Yash Wire Industries

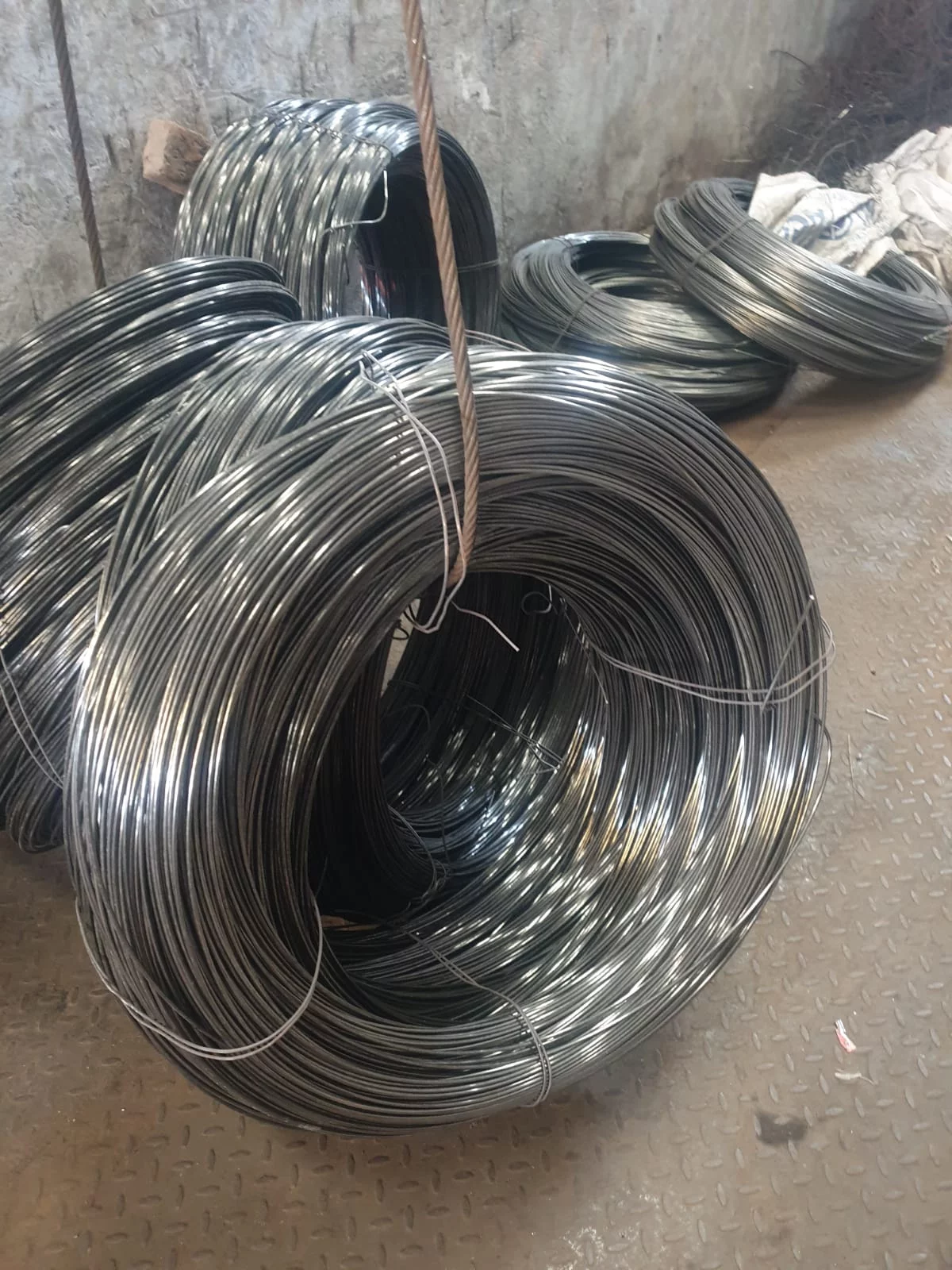

High Carbon Steel Wires

We manufacture High Carbon Steel Wires in various cross sections in size range from 0.15 MM to 12.50 MM with Carbon content from 36 to 85. HC Wires are known for their hardness & high tensile strength. HC Wire can be supplied as per IS 13835 (1975); ISO 4454 (2001), JIS 3506 and strictly as per customer specifications. HC Wires can be offered in various finishes i.e. annealed, patented, hard, coated (Phosphate & Oil Condition), and clean surface. All properties like hardness, tensile strength, size tolerance, coil weight etc are maintained as per customers’ specifications.

Diameter: 0.10-0.79 MM

Coil ID 90MM, 110MM

Coll Wt: 100 to 400 kg

Zinc Coating: 15 to 80 GSM/Samtr

Finish: Black (Oil & Without Oil) Calvanized

Packing Spool and Coll

Major Applications

Grades

201, 304, 410, 430L

Diameter

4mm to 16mm**

Length

3/4/5/6 meter

Condition

Cold Drawn, Centreless Grinded & Polished

Application

Machine Tools, Dairy Equipments, Surgical & Medical Parts, Threaded Bars, Studs, Bolts. Pins. Hinges. Handles and Kitchen Ware.

Our range of Stainless Steel Cold Heading Wires ensures high formability and cold extrusion properties in diameter range 1.60 mm to 16.00 mm. These wires are free from surface imperfections like seams, cracks, pitting and or scratch/ die marks. Wires are available in various Grade e.g. 204Cu, 304/304L, 302 CHQ, 304HC, etc. in various finishes viz. soap drawn, skin pass or in Annealed conditions.

Grades

201, 204Cu, 304/304L, 302 CHQ, 304HC

Diameter

Range 1.60 mm to 16.00**mm.

Finishes

Soap Drawn, Skin Pass, Soft Bright Annealed & Solution Annealed



Applications



Fasteners, Wood Screws, Machine Screws, Nuts, Bolts, Rivets, Studs. Balls, Pins, Building & Construction Segment, Automotive Industry & House Hold Appliances.

Our stainless steel welding wires are suitable for stainless steel welding and cryogenic applications. They have excellent flux adhesion and corrosion resistance.

Grades



AISI 202, 304, 304L/ER304L, 307 LSI, 308/E R 308 L, 309/ER309L, 310/ER310, 316L/ER316L & 430L etc.

Diameter



Core Wire



Core wire for electrode in coil from 1.60mm to 5.00**mm.

MIG Wire

wire on spools from 0.80 mm to 1.60**mm

TIG Wire

In cut length 1.60 mm to 5.00**mm.

Finish



Core Wire



Bright or Powder Coated

MIG Wire

Bright or Cleaned

TIG Wire

Bright or Cleaned

Packing



Core Wire



In Colls of 100-125 Kgs

MIG Wire

Plastic Spools of 12 Kgs/15kgs

TIG Wire

1000 mm/500 mm length in Plastic sleeves. On every TIG Wire length, grade of the wire is engraved.
